Compression Springs

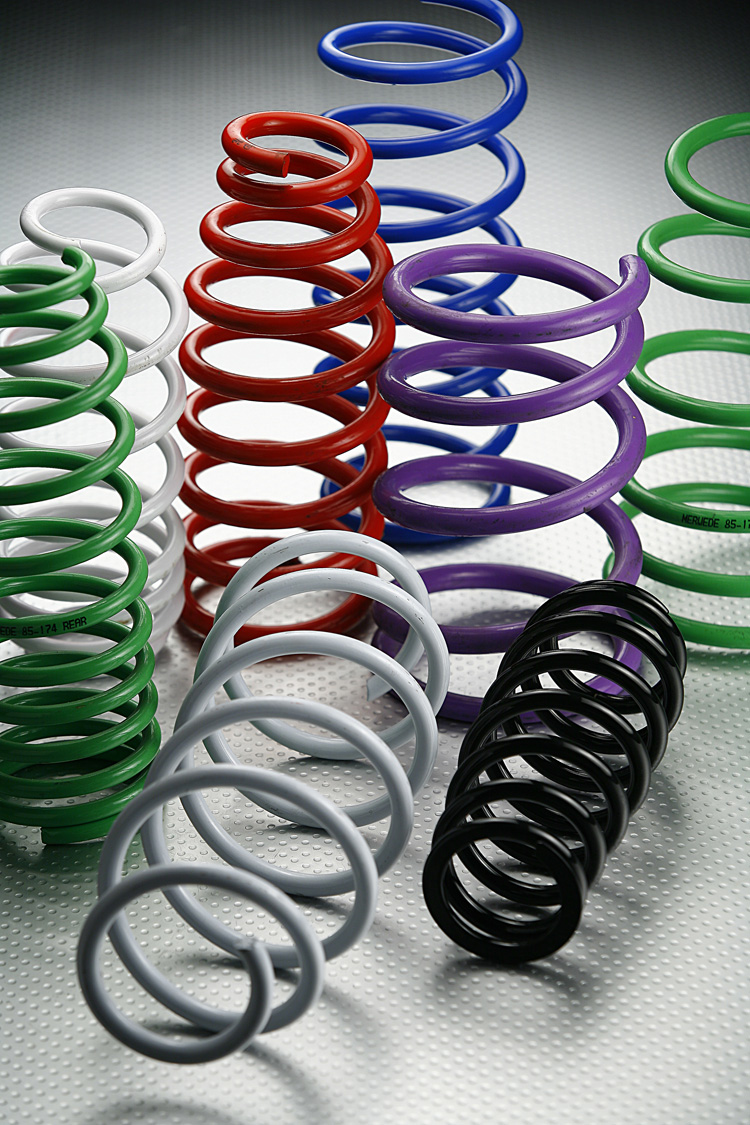

冷間懸吊彈簧-6

Compression springs provide push force and store energy as they compress. CSW designs and manufactures cylindrical or conical springs with optimized index, coil count, and end configuration to achieve the specified spring rate and load at working height while controlling solid height and buckling risk. We advise on material and finish based on the operating environment, then validate performance through load‑at‑height testing and end‑grind flatness where required.

Specifications:


Wire Diameter	0.30–6.00 mm
Outside Diameter (OD)	Per design
Free Length	Per design
Total / Active Coils	Per design
Ends	Closed & Ground / Closed & Not Ground / Open
Spring Rate (k) & Loads	Verified by test (e.g., P1@L1, P2@L2)
Tolerances	Per drawing (load @ height, length, OD)
Materials	Music wire (ASTM A228), hard‑drawn, oil‑tempered, stainless 302/304/316, phosphor bronze, beryllium copper, alloy steels
Finishes	Zinc / Zn‑Ni, black oxide, phosphate & oil, passivation, powder coat, custom
Heat Treatment	Stress relief; quench & temper when specified
