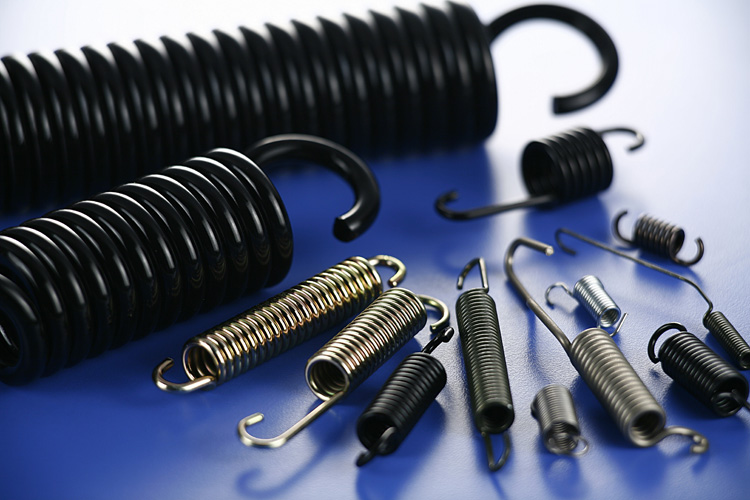

Extension Springs

17076544114

Extension springs deliver controlled pull force and are supplied with precision‑formed ends such as machine hooks, extended hooks, side loops, or custom inserts. CSW tunes initial tension, body geometry, and travel to meet the required load at full extension while protecting against over‑stretch and hook stress. Materials and coatings are selected for the environment to balance corrosion resistance, strength, and cost.

Specifications:


Wire Diameter	0.30–6.00 mm
Body OD / Length	Per design
Initial Tension	Set and measured per spec
Maximum Travel	per design limits
End Types	Machine hooks, extended hooks, crossover, swivel/insert, custom
Materials	Music wire, hard‑drawn, oil‑tempered, stainless 302/304/316, phosphor bronze, BeCu
Finishes	Zinc / Zn‑Ni, black oxide, passivation, e‑coat/paint (as required)
Heat Treatment	Stress relief after forming
